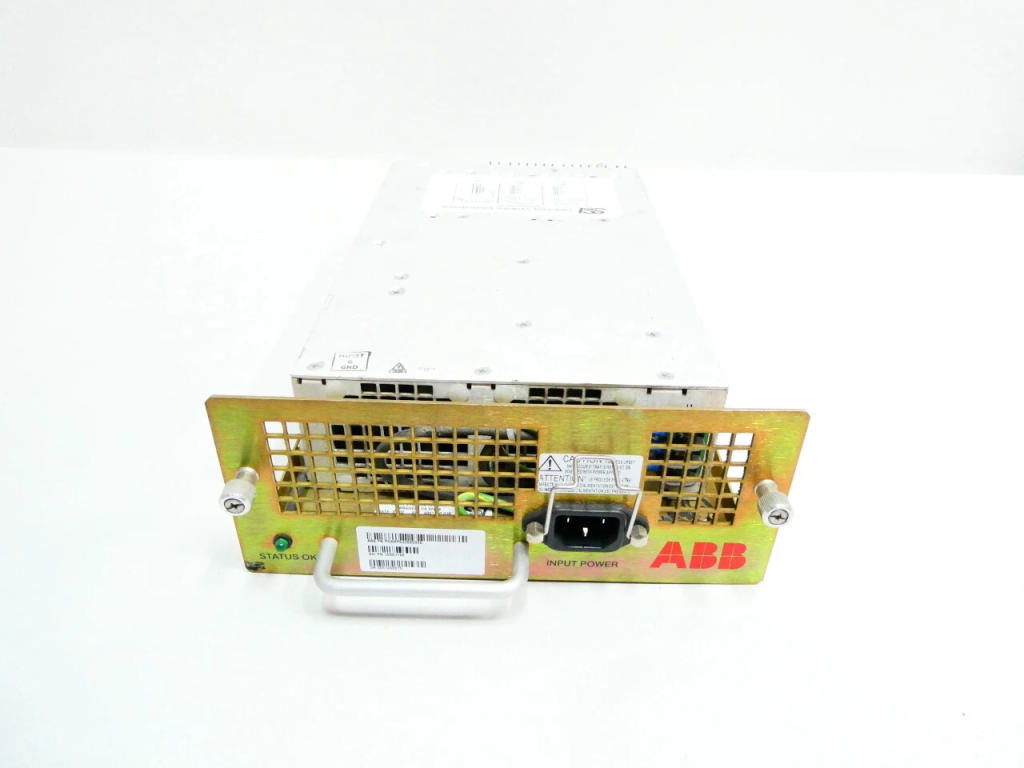

ABB PHARPS32000000 Power Supply Module: A Comprehensive Overview
Introduction
The ABB PHARPS32000000 is a high-performance power supply module designed for industrial automation systems, particularly within the ABB Modular Power System III (MPS III) series. This module is integral to the Symphony Harmony INFI 90 series control systems, providing reliable and efficient power distribution to various components.
Technical Specifications
- Input Voltage: 90–264 V AC, 47–63 Hz
- Output Voltages:
- 5V DC at 60A
- +15V DC at 3A
- -15V DC at 3A
- 24V DC at 17A
- 48V DC at 8.5A
- Total Output Power: Approximately 320W continuous
- Efficiency: ≥90%
- Dimensions: 228.6 mm (D) × 330.2 mm (H) × 635 mm (W)
- Weight: Approximately 5.9 kg
- Operating Temperature Range: -20°C to +70°C
- Safety Standards: UL 508, CE, cULus listed
- Environmental Compliance: WEEE Category 5
Key Features
- Multiple Output Channels: Delivers five distinct DC voltages, accommodating diverse system requirements.
- High Efficiency: Ensures minimal energy loss, contributing to cost savings and reduced heat generation.
- Robust Design: Built to withstand harsh industrial environments, ensuring longevity and reliability.
- Modular Integration: Seamlessly integrates with ABB’s MPS III and Symphony Harmony INFI 90 systems.
- Comprehensive Protection: Equipped with overvoltage, overcurrent, and short-circuit protection mechanisms.
Applications
The PHARPS32000000 power supply module is ideal for applications requiring stable and efficient power distribution, such as:
- Distributed Control Systems (DCS): Providing power to field devices and controllers.
- Programmable Logic Controllers (PLC): Supplying power to PLC racks and modules.
- Industrial Automation Equipment: Powering sensors, actuators, and other automation components.
- Communication Systems: Ensuring reliable power for network equipment.
Installation and Maintenance
- Installation: Mount the module securely within the control panel, ensuring adequate ventilation and accessibility.
- Wiring: Connect input and output terminals as per the system’s wiring diagram, observing correct polarity and torque specifications.
- Maintenance: Regularly inspect for signs of wear, ensure connections are tight, and verify output voltages using appropriate measuring instruments.
Conclusion
The ABB PHARPS32000000 power supply module stands out as a reliable and efficient solution for industrial automation systems. Its robust design, multiple output channels, and compliance with international safety standards make it a preferred choice for engineers and system integrators seeking dependable power solutions.
