Exploring the ABB TB557J3EB1T29 pH/ORP Sensor – A Deep Dive Into Industrial pH/Electrode Technology
In today’s blog post, we’re going to dig deep into the ABB TB557J3EB1T29 pH/ORP sensor (sometimes referred to as a pH electrode) — what it is, what makes it special, how it works, why you might choose it, and how to get the best out of it in your industrial process. We will include all the relevant keywords such as ABB, pH electrode, TB557J3EB1T29, hot-tap, retractable pH sensor, ORP (redox) measurement, solid-state reference, Next Step™ reference technology, industrial process measurement, Kynar (PVDF) body, ball-valve insertion, hot-tap installation, and more — so you’ll have a comprehensive picture.

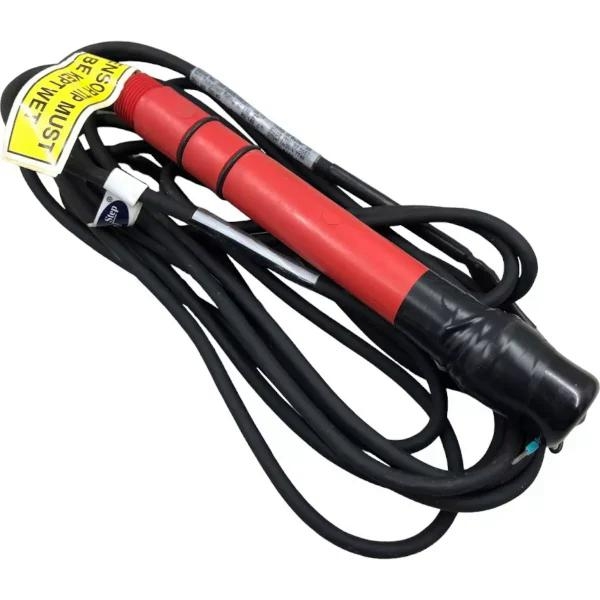

1. What is the ABB TB557J3EB1T29?
The TB557J3EB1T29 is a specific variant belonging to ABB’s TB(X)5 series of industrial pH / Redox (ORP) sensors. The series is built by ABB (a global automation & measurement-technology company), specifically targeting demanding process-industry applications (water & wastewater, chemical, power, pulp & paper, etc.). For example, ABB’s own product overview states that the TBX557 series (the hot-tap retractable version) is designed for “industrial hot-tap retractable pH / redox (ORP) sensors.
Key points about the series and the model:
- It supports pH and/or ORP (redox) measurement — in other words, the sensor can be used to measure hydrogen-ion activity (pH) or redox potential (ORP) depending on configuration.
- It uses the Next Step™ solid-state reference technology: ABB describes that “the totally solid inner reference chamber is charged with potassium chloride (KCl). This non-liquid reference all but eliminates poisoning, plugging and pumping problems that plague conventional liquid, slurry and gel designs.
- The body style is designed for ball-valve insertion / hot-tap installation — meaning the sensor can be inserted or retracted from a live process (pipe) via a ball valve arrangement, which is extremely convenient for maintenance without shutting down the process.
- The “J3EB1T29” in TB557J3EB1T29 is part of the ordering code that defines measuring electrode type, junction type, cable/connector, insertion type, etc. (While I do not have the full decode for J3EB1T29 publicly, the series datasheet explains how codes define body style, electrode type, temperature compensator, junction style, etc.)
In simple terms: if you need a high-end industrial pH/ORP sensor that can be serviced while online, and offers rugged construction and advanced reference technology, the TB557J3EB1T29 (and its TB557 series siblings) are suitable candidates.
2. Why Choose the TB557J3EB1T29? What Makes It Stand Out
Rugged Industrial Design
One of the standout features of the TB(X)5 series (including TB557) is the very high industrial capability. According to the datasheet: “Operating temperatures up to 140 °C (284 °F) … Operating pressures up to 21 bar (300 psi) and higher.”
This means that the TB557J3EB1T29 is built not just for controlled lab-like conditions, but for real process plants where temperatures, pressures, fouling, abrasion and chemical exposure are common.
Solid-State Reference Technology
The “Next Step™” solid-state reference is a major improvement over traditional sensors with gel or liquid reference systems. The advantages are: reduced risk of reference poisoning, plugging of junction, migrating of gel, need for replenishment etc. As ABB puts it: “the most durable pH / Redox (ORP) sensors in the world” owe much to this reference design.
For you as a user, this typically translates into longer lifetime, fewer maintenance interventions, and more stable readings over time.
Hot-Tap / Retractable Installation Flexibility
The TB557 series supports ball-valve insertion and hot-tap configurations. The datasheet shows that the TBX557 models are “ball valve insertion, hot-tap, Kynar body, pH / ORP sensor assembly.
This type of installation allows you to insert the sensor into a process line, then retract it for maintenance or calibration, often without shutting down the line. That yields lower disruption, less downtime, and safer/cleaner maintenance.
Modular & Customisable Ordering Codes
The model code (e.g., J3EB1T29) allows you to tailor the sensor: different electrode types (flat glass, high temperature glass, ORP platinum/gold elements), junction types (wood, PTFE, flush, notched), body styles (Kynar PVDF or other materials), temperature compensators, cable lengths, etc. The datasheet provides a full ordering key.
This means you can pick a sensor that fits your exact process (chemistry, temperature, mounting style) rather than a “one-size-fits-all”.
Strong Brand & Application Ecosystem
Being from ABB means that you benefit from global support, documented reliability, a wide selection of accessories (mounting hardware, retractable housings, transmitters), standardisation across plants, etc. The TB(X)5 series is well known in process industry.
3. Technical Features & Specifications (What We Know)
Because I don’t have a full datasheet exclusively for TB557J3EB1T29 in my hands, I’ll summarise general features of the TBX557 series (including TB557) and then highlight what likely applies to the specific model.
General Features (TBX557 / TB557 series)
From ABB’s datasheet: (library.e.abb.com)
- Solid-state Next Step™ reference – eliminates poisoning, plugging and pumping problems.
- “Combination style construction – measuring, reference and temperature elements all in one compact body.”
- Supports Insertion, Submersion, Flow-through and Hot-tap installations.
- Comprehensive selection of wetted materials to assure compatibility with your process.
- Operating temperature up to 140 °C (284 °F).
- Operating pressure up to 21 bar (300 psi) and higher.
- Electrode types: e.g., for pH: Type 1 flat glass (0-14 pH, 10-100 °C), Type 2 general purpose glass, Type 3 High temperature glass (0-14 pH, up to 140 °C). For ORP: Type 5 platinum, Type A gold.
- Body material for TB557: typically Kynar (PVDF) body, configured for ball valve/hot-tap retraction. (See ordering key: “TBX557 – Ball Valve Insertion, Hot-Tap, Kynar body”).
What the “J3EB1T29” Might Imply
While the full code decode is not publicly detailed in the resources I found, the datasheet shows how codes work:
- “J” likely indicates type of cable/connector or junction box.
- “3” could indicate measuring electrode type (e.g., high temperature glass).
- “E” might indicate certain body accessory hardware or junction type.
- “B1” might indicate a particular hardware kit or O-ring material.
- “T29” might indicate cable length or specific cable termination (e.g., T for Tinned leads, 29 = 29 ft/8.8m max cable length).
In the datasheet for TBX557 it says: “The standard cable length of 4 ft (1.2 m) … Maximum 29 ft (8.8 m)”.
Thus, the TB557J3EB1T29 likely is a ball-valve hot-tap pH/ORP sensor in the TB557 family, high temperature or high specification electrode (3), with a junction box/cable arrangement and a long cable (T29).
So when specifying, you should confirm each code element with ABB or your distributor.
Practical Typical Spec (for this family)
- Measurement range: 0-14 pH (for pH type) or ±2000 mV (for ORP) in many variants. (library.e.abb.com)
- Temperature rating: up to ~140 °C (for high temperature glass types).
- Pressure rating: up to ~21 bar (300 psi) for some versions.
- Body material: Kynar (PVDF) – chemical resistant.
- Cable: integral potted cable, or junction box depending on code.
- Installation style: hot-tap / ball valve insertion means you can retract sensor for cleaning/calibration.
- Reference: Solid-state KCl charged chamber.
4. Applications – Where Does This Sensor Shine?
Given its specification, the TB557J3EB1T29 is particularly well suited for demanding industrial chemical and water‐treatment processes. Some typical use cases:
- Continuous industrial water-quality monitoring: In power plants (boiler feedwater, cooling water circuits), chemical plants, wastewater treatment, where pH or ORP is a critical process parameter and reliability is key.
- Hot-tap / online insertion service: Since the sensor supports ball-valve insertion/withdrawal, it is valuable in plants where shutting down the line for a sensor change is undesirable.
- Harsh chemical environments: Because of the rugged body (Kynar), high temperature/pressure rating, and solid-state reference, it is suited for media with potential fouling, high particulate load, high temperature, or aggressive chemistries.
- Process industries: Pulp & paper, mining, oil & gas, chemical manufacturing—anywhere where pH or ORP impacts reaction control, corrosion control, or effluent compliance.
- High reliability, reduced maintenance regimes: The solid‐state reference and serviceable hot-tap design reduce downtime and maintenance overhead.
In short: if you have a process line where downtime is expensive, the environment is harsh, and you need reliable pH/ORP measurement, the TB557J3EB1T29 is very much in the “premium” category for sensors.
5. Installation, Calibration & Best Practices
To get the most from the TB557J3EB1T29 (and indeed any high-end pH/ORP sensor) you should follow good practices:
Installation Guidelines
- Ensure proper mounting: As a hot-tap retrievable sensor you’ll likely install it via a ball-valve assembly. Make sure the ball valve and saddle or insertion port are correctly sized and rated for your process pressure/temperature.
- Insertion depth matters: Ensure the sensor’s insertion reaches into the process fluid (not into stagnant zones) and is positioned in a representative flow region.
- Orientation and flow considerations: Avoid placing the sensor in a dead zone, avoid high turbulence immediately adjacent, and ensure the cable and junction box are secured and sheltered from extreme heat or mechanical damage.
- Check wetted materials compatibility: While Kynar (PVDF) body is very resistant, check the rest of the sensor’s wetted parts (electrode glass, O-ring materials) are compatible with your fluid (pH, oxidisers, slurries, high solids, etc.).
Calibration & Maintenance
- Calibration: pH sensors should be calibrated regularly. Even with solid-state references, changes in glass membrane or junction ageing impact performance. Use suitable buffer solutions (for example pH 4, 7, 10) and follow your company’s calibration schedule.
- Cleaning: In fouling environments or slurry-laden fluids, periodically retract the sensor (thanks to the hot-tap design) and clean the glass membrane and junction area. This helps maintain response speed and accuracy.
- Check cable/connector integrity: Because the TB557J3EB1T29 likely has a junction box or integral cable (T29 code maybe = long cable), ensure that connections are tight, waterproof and that the cable isn’t mechanically stressed.
- Temperature compensation: Many of these sensors include a Pt100 or 3 kΩ temperature compensator (check your exact code). Ensure your transmitter or analyzer is configured for temperature compensation to avoid errors due to temperature variation.
- Withdrawal/retractable operation: Use the ball‐valve and retractable assembly as designed: flush the port if necessary, retract the sensor for service and then reinsert carefully, avoiding damage to the membrane.
Troubleshooting Common Issues
- Slow response / drift: Often due to fouling of membrane or junction. Cleaning or replacing sensor may be needed.
- Reference failure or erratic readings: Although solid-state reference reduces this risk, if the sensor has been exposed to extreme abuse (thermal shock, high contamination) the reference may degrade.
- Cable/connection issues: If the sensor shows low signal or erratic, inspect the cable for abrasion, moisture ingress, or damage.
- Process compatibility: If you find the sensor is exposed to ultra-aggressive fluids (e.g., strong acids + HF, or very low pH, or extreme high pressure) you may have to select a more exotic electrode variant (for example Code F fluoride/acid resistant) per the datasheet.
6. Specifying the Right Version & Ordering Considerations
Because the TB557 series has many variant codes, when you’re specifying the TB557J3EB1T29 (or comparing with alternative codes) keep these aspects in mind:
- Electrode type: Choose between flat glass (high density duty), high temperature glass, ORP (platinum or gold) depending on your measurement (pH vs ORP) and fluid conditions.
- Junction style: Flush vs notched junctions – flush for heavy fouling flows, notched for hot-tap / retractable installations where protection is needed.
- Body / Material: The TB557 series uses Kynar (PVDF) for body in many configurations. If your process has extreme chemicals or high materials requirement you might consider other body styles or materials.
- Cable / Junction Box: The code often contains the cable length and connector type. For example, T29 likely indicates a long cable (up to 29 ft / 8.8 m) per datasheet guideline.
- Installation style: Confirm you are ordering the hot-tap / ball valve insertion type (TB557/TBX557) versus in-line submersion types (TB556 etc.).
- Accessories: Check if you need the ball valve assembly, retractable housing, mounting hardware, extension cable, or transmitter interface.
- Compatibility with transmitter/analyzer: Ensure the sensor’s cable termination matches your analyzer (BNC, pin leads, junction box) and the analyzer is configured for the correct sensor type (pH or ORP).
- Spare parts / maintenance plan: Since this is a premium sensor, plan for spare sensors or replacement electrodes to minimise downtime.
7. Comparing TB557J3EB1T29 with Alternative Sensor Solutions
When choosing a sensor for pH/ORP measurement, there are lower-cost laboratory-type sensors, standard industrial submersion sensors and premium retractable ball-valve sensors like the TB557. Let’s compare:
| Feature | Standard Submersion pH Electrode | TB557J3EB1T29 (High-End Retractable) |
|---|---|---|
| Installation flexibility | Often fixed, may require shutdown | Hot-tap ball-valve insertion, live process servicing |
| Reference system | Gel or liquid reference, higher risk of poisoning/plugging | Solid-state Next Step™ reference, improved durability |
| Temperature/pressure rating | Moderate (e.g., up to 100 °C, low pressure) | Up to ~140 °C, high pressures (20+ bar) |
| Maintenance frequency | Higher — may need frequent replacement or cleaning | Reduced maintenance thanks to design |
| Capital cost | Lower upfront cost | Higher upfront cost |
| Suitability for harsh conditions | Lower to moderate | High – designed for aggressive process environments |
| Downtime impact | Potentially higher (requires shutdown to service) | Lower (retractable, servicing without shutdown) |
So, if your application is a critical process line where downtime is expensive, or where conditions are harsh (chemicals, fouling, high temperature/pressure), then a premium sensor like the TB557J3EB1T29 is justified. If your application is less demanding (lab, light industrial, low pressure), then a simpler sensor might suffice.
8. Real-World Tips & Best Practices for Lifetime Performance
Here are some additional tips derived from industry practice to help you get maximum lifetime and performance from your TB557J3EB1T29:
- Pre-install flushing: If the process line has solids or suspended matter, consider flushing the insertion port before installing the sensor, or use a flow-through holder to reduce fouling.
- Guard against thermal shock: If process fluid experiences rapid temperature swings, design insertion lengths/holders to buffer or match sensor rating; high temperature versions help.
- Keep spare electrodes: Even the best sensors will eventually need glass replacement or may be damaged. Having a spare minimises downtime.
- Document calibration records: Keep track of your calibration dates, drift trends, electrode impedance (if supported) so you can spot sensor ageing.
- Use proper reference buffers: For calibration, ensure that buffer solutions are fresh and at correct temperature. Temperature variation affects calibration accuracy.
- Record process conditions: If your process fluid composition changes (e.g., increased chlorides, higher solids), review sensor suitability periodically.
- Mounting orientation matters: Ensure the sensor is positioned so that the reference junction is wetted, avoid air pockets, and avoid mounting in a stagnant zone or upstream of a pump.
- Cable & junction box care: Protect from mechanical stress, chemical exposure and heat. Seal junctions to prevent moisture ingress which can cause sensor failures over time.
- Use analytics/transmitter diagnostics: If your process analyzer supports diagnostics (impedance, reference drift), make use of these features to proactive maintenance.
9. Summary & Final Thoughts
In summary, the ABB TB557J3EB1T29 pH/ORP sensor is a premium industrial sensor designed for high-demand environments where reliability, maintainability and accuracy matter. Its key advantages include:
- Robust construction and materials built for industrial conditions.
- Solid-state reference that improves durability and reduces downtime.
- Hot-tap/ball-valve design allowing online servicing.
- Flexibility in configuration (electrode type, junction style, cable, body) to match process needs.
- Strong brand support and a global ecosystem of service and accessories.
If you are working in a process where pH or ORP measurement drives critical decisions (chemical dosing, compliance, reaction control, corrosion monitoring) and where downtime or sensor failure is expensive, then choosing a sensor like the TB557J3EB1T29 makes sense.
On the flip side, if your process is benign, shutdown is easy, and cost sensitivity is high, you might evaluate whether a lower-cost sensor offers an acceptable trade-off.
If you are considering specifying or purchasing this sensor, my recommendation is:
- Obtain the full datasheet for the exact code TB557J3EB1T29 from ABB (or your distributor).
- List all your process requirements (fluid chemistry, temperature, pressure, mounting style, insertion depth, cable length, transmitter interface).
- Confirm compatibility with your analyzer/transmitter (pH vs ORP, temperature compensation, connector).
- Review maintenance plans: how often will you calibrate? Can you retract the sensor for servicing? Do you need spare electrodes?
- Evaluate total cost of ownership: initial cost + maintenance + downtime vs alternative sensors.
If you like, I can pull up a detailed technical spec sheet for TB557J3EB1T29 (or the TBX557 family) and we can review how it maps to your specific process (e.g., temperature 120 °C, caustic soda, etc.). Would you like me to source that?
